MODEL
DC
AMPS
DC
VOLTS
AC REQUIREMENTS
Dimensions
H.W.D in.
Weight
lbs.
QPA6-127v/6A
6
6-127
117VAC 60hz. 9 amps
8 x 12 x 9
34
QPAX36-240v/6A
6
12-127
230VAC 60hz. 8 amps
8 x 12 x 9
38
QPA12-127v/15A
15
36-240
117VAC 60hz. 18 amps
8 x 12 x 11
48

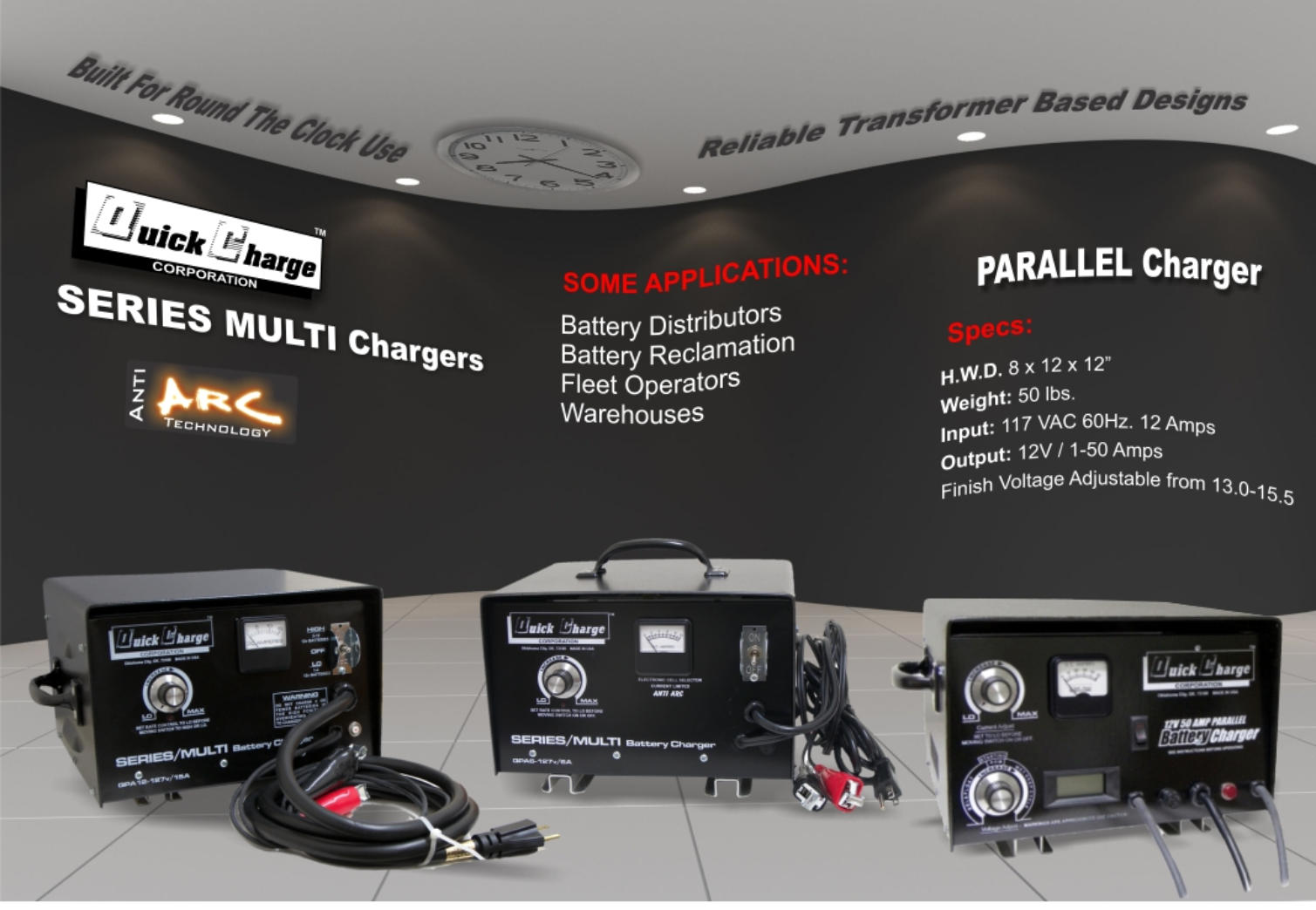

Model QPA12v/50A is designed with maximum flexibility. The adjustable
current control means it can charge groups of wet cells, AGM's or gel
batteries requiring as little as 1 amp each, or put as much as 50 amps
into one battery. The adjustable voltage control means you can control
final voltage with precision. Equipped with ammeter, and digital
voltmeter for battery monitoring. Safety features include, reverse
polarity protection, and current limiting.
Designed around the needs of the battery specialist, fleet operators,
warehouses, and reclaimers. The constant current output is current
limited, and is controlled by one linear adjustment. Voltage is adjusted
automatically on the QPA6-127v/6A, and a range switch is used on the
other two models. These models use no micro processor, and are ideal
for busting loose stubborn sulfation using a slow 12-24 hour charge. The
reverse polarity feature, and isolated, all copper transformer make the
Series Multi's safe.

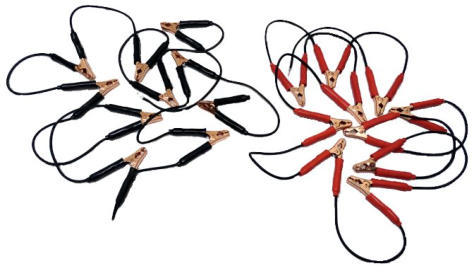

Parallel
Cable
Set:
Charging
batteries
in
parallel
means
connecting
all
the
positives,
and
all
the
negatives
together.
This
cable
set
does
just
that.
The
ends
are
then
connected to the charger cables.

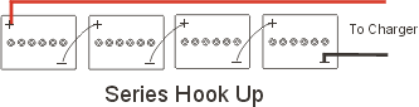

SERIES JUMPERS
Connect one battery
to another.
18” long
