MODEL
DC AMPS
DC VOLTS
AC Power
Dimensions H.W.D in.
Weight lbs.
SCES1260
60
12
117 volt 60Hz. 12 amp
10 x 9.5 x 17.5
58
SCES1660
60
16
117 volt 60Hz. 15 amp
10 x 9.5 x 17.5
68
SCES2460
60
24
117 volt 60Hz. 20 amp
10 x 9.5 x 17.5
68
SCESX3260
60
32
208-230 volt 60Hz. 18-15 amp
10 x 9.5 x 17.5
75
SCESX3660
60
36
208-230 volt 60Hz. 19-16 amp
10 x 9.5 x 17.5
75
SCESX4860
60
48
208-230 volt 60Hz. 23-20 amp
10 x 9.5 x 17.5
75
SCESX6450
50
64
208-230 volt 60Hz. 23-20 amp
10 x 9.5 x 17.5
75
SCESX7240
40
72
208-230 volt 60Hz. 20-18 amp
10 x 9.5 x 17.5
75
SCESX9640
40
96
208-230 volt 60Hz. 23-20 amp
10 x 9.5 x 17.5
75
MODEL
DC AMPS
DC VOLTS
AC Power
Dimensions H.W.D in.
Weight lbs.
SCES12100
100
12
117 volt 60Hz. 15 amp
24 x 14 x 15
85
SCESX24100
100
24
208-230 volt 60Hz. 15-12 amp
24 x 14 x 15
95
SCESX32100
100
32
208-230 volt 60Hz. 31-28 amp
24 x 14 x 15
100
SCESX36100
100
36
208-230 volt 60Hz. 33-30 amp
24 x 14 x 15
100
SCESX48100
100
48
208-230 volt 60Hz. 35-33 amp
24 x 14 x 15
110
SOME APPLICATIONS: FORKLIFTS | OFF GRID APPLICATIONS | WIND & SOLAR  POWER  BACKUP | MARINE | MINING | EV'S
6ft AC cord, 8ft DC leads, your choice of SB connector, clamps, or ring terminal ends.
FAN COOLED

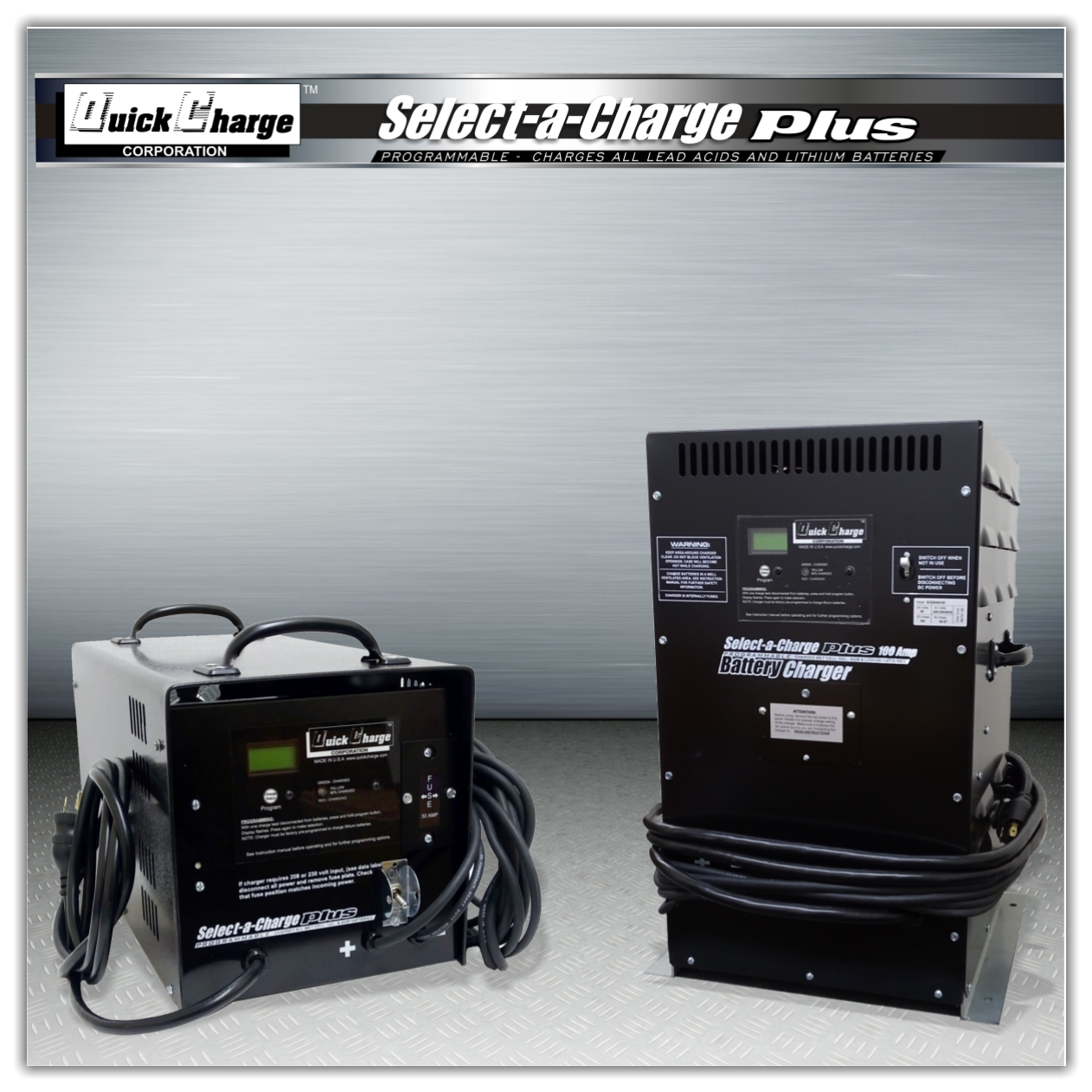

40 and 60 Amp Chargers
             100 Amp Chargers
SCREEN SHOTS
Battery Type & Charge Setting
Volts & Amps
Cycle Progress
Capacity Replaced
Clock
Charge Profile
OPERATING INSTRUCTIONS
All models available in 230v 50Hz.  (Prefix SCSXU)
750-1000 AH batteries
The SCES line of chargers provide all the technology and features you need. These models supersede all previous Select-A-Charge models. The informative display, and programmability are accessible using a simple one touch button. They charge all lead acid industrial, batteries, and Lithium Ion batteries, and are available in a wide variety of volt/amp combinations. More energy efficient than previous models, they bring batteries to a full charge, and completely disconnect from the AC mains. Batteries are continuously monitored using no AC power. In the event batteries become discharged, these models will recycle themselves with a refreshing charge.
