MODEL
DC
AMPS
DC
VOLTS
AC
Power
Dimensions
H.W.D in.
Weight
lbs.
Battery Capacity
@20 hr. Rate
Drawing
OB1210
10
12
117v 60hz.
2 amp
4.5 x 7 x 5.5
11
80-150 Amp Hour
OB1215
15
12
117v 60hz.
2 amp
4.5 x 7 x 5.5
11
80-180 Amp Hour
OB1225
25
12
117v 60hz.
3 amp
6 x 9 x 5.5
18
150-350 Amp Hour
OB1235
35
12
117v 60hz.
5 amp
6 x 9 x 8.5
27
220-450 Amp Hour
OB1250
50
12
117v 60hz.
8 amp
6 x 9 x 9
36
350-500 Amp Hour
OB1625
25
16
117v 60hz.
5 amp
6 x 9 x 5.5
19
150-350 Amp Hour
OB246
6
24
117v 60hz.
2 amp
4.5 x 7 x 5.5
11
50-120 Amp Hour
OB2410
10
24
117v 60hz.
3 amp
4.5 x 7 x 5.5
15
80-150 Amp Hour
OB2415
15
24
117v 60hz.
4 amp
4.5 x 7 x 5.5
15
80-180 Amp Hour
OB2425
25
24
117v 60hz.
7 amp
6 x 9 x 6.5
26
150-350 Amp Hour
OB2440
40
24
117v 60hz.
10 amp
6 x 9 x 9
36
250-450 Amp Hour
OB3225
25
32
117v 60hz.
9 amp
6 x 9 x 7
34
150-350 Amp Hour
OB3235
35
32
117v 60 hz.
13 amp
6 x 9 x 9
43
220-450 Amp Hour
OB3612
12
36
117v 60hz.
4 amp
4.5 x 7 x 7.5
18
80-150 Amp Hour
OB3615
15
36
117v/ 60hz.
8 amp
6 x 9 x 6.5
26
80-200 Amp Hour
OB3625
25
36
117v/ 60hz.
10 amp
6 x 9 x 7
34
150-350 Amp Hour
OB3635
35
36
117v/ 60hz.
10 amp
6 x 9 x 9
43
220-450 Amp Hour
OB3640
40
36
117v/ 60hz.
20 amp
7.5 x 10.5 x 13
48
250-550 Amp Hour
OB485
5
48
117v/ 60hz.
5 amp
4.5 x 7 x 6.5
15
30-80 Amp Hour
OB4815
15
48
117v/ 60hz.
9 amp
6 x 9 x 6.5
27
100-225 Amp Hour
OB4825
25
48
117v/ 60hz.
14 amp
6 x 9 x 8
42
150-350 Amp Hour
OB4840
40
48
117v/ 60hz.
23 amp
7.5 x 10.5 x 13
50
250-550 Amp Hour
OB6020
20
60
117v/ 60hz.
13 amp
6 x 9 x 8
41
150-300 Amp Hour
OB6420
20
64
117v/ 60hz.
14 amp
6 x 9 x 8
42
150-300 Amp Hour
OB725
5
72
117v/ 60hz.
3 amp
4.5 x 7 x 6.5
15
30-80 Amp Hour
OB7210
10
72
117v/ 60hz.
9 amp
6 x 9 x 6.5
28
80-150 Amp Hour
OB7220
20
72
117v/ 60hz.
18 amp
6 x 9 x 8
42
150-300 Amp Hour
OB2425SJ
25
24
117v/ 60hz.
7 amp
6 x 9 x 6.5
27
150-350 Amp Hour
OB2425GN
25
24
117v/ 60hz.
7 amp
6 x 9 x 6.5
27
150-350 Amp Hour
Vibration Resistant:
Doesn't use delicate electronics
Scissor Lifts
Standby Generators
Electric Vehicles
Electric Boats
Floor Scrubbers
Pallet Trucks
Golf Carts
Mining
Oil Field
Railroads
RV's
#1 Replacement Charger
Fits Almost Anyplace on Anything
OPTIONS
Rugged Construction:
Totally enclosed to resist the effects of water, dirt, and a harsh environment.
I65 rated.
Near bullet proof:
Tough die cast enclosure
Reliable:
Transformer based design
Safe:
Current limited, and reverse polarity protected. Slow turn on with as little as
2 volts in batteries.
Some Applications
USER PROGRAMMABLE:
Charge Deep Cycle Wet Cell, AGM, Gel, and Lithium batteries.
All models available in 230v 50Hz. (Prefix OBXU)
“OBE” Temperature compensated float models.
Designed to charge and maintain starting and gel batteries. Voltage adjusts to
ambient air temperature. Perfect for standby power applications. Not for deep
cycle batteries that are cycled up and down.

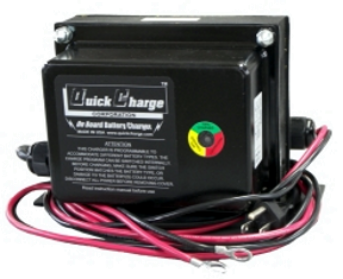

Small - 6, 10, 15 Amp

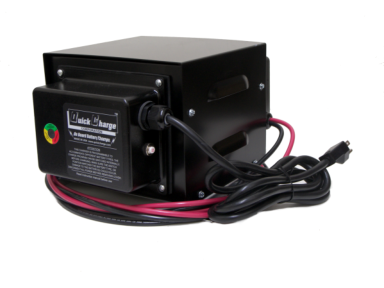

Large - 15, 25, 35, 40, 50 Amp
Small - 6, 10, 12, 15 Amp
36-48 Volt, 40 Amp
- Standard On Board Chargers
- Standard Portable Chargers
- Select-A-Charge On Board Chargers
- Select-A-Charge Portable Chargers
- Select-A-Charge 60-100 amp Chargers
- Series Parallel Chargers
- Aircraft APU'S
- OEM Replacement Chargers
- Accessories
- Manual Boost Chargers
- Multi Bank Chargers
- Load Testers, Dischargers, Recovery
MODEL
DC
AMPS
DC
VOLTS
AC
Power
Dimensions
H.W.D in.
Weight
lbs.
Battery Capacity
@20 hr. Rate
Drawing
OBE12v/10A
10
12
117v 60hz.
2 amp
4.5 x 7 x 5.5
11
80-150 Amp Hour
OBE12v/15A
15
12
117v 60hz.
2 amp
4.5 x 7 x 5.5
11
80-180 Amp Hour
OBE24v/6A
6
24
117v 60hz.
2 amp
4.5 x 7 x 5.5
11
50-120 Amp Hour
OBE24v/10A
10
24
117v 60hz.
3 amp
4.5 x 7 x 5.5
15
80-150 Amp Hour
OBE24v/15A
15
24
117v 60hz.
4 amp
4.5 x 7 x 5.5
15
80-180 Amp Hour
All models available in 230v 50Hz. (Prefix OBEXU)
