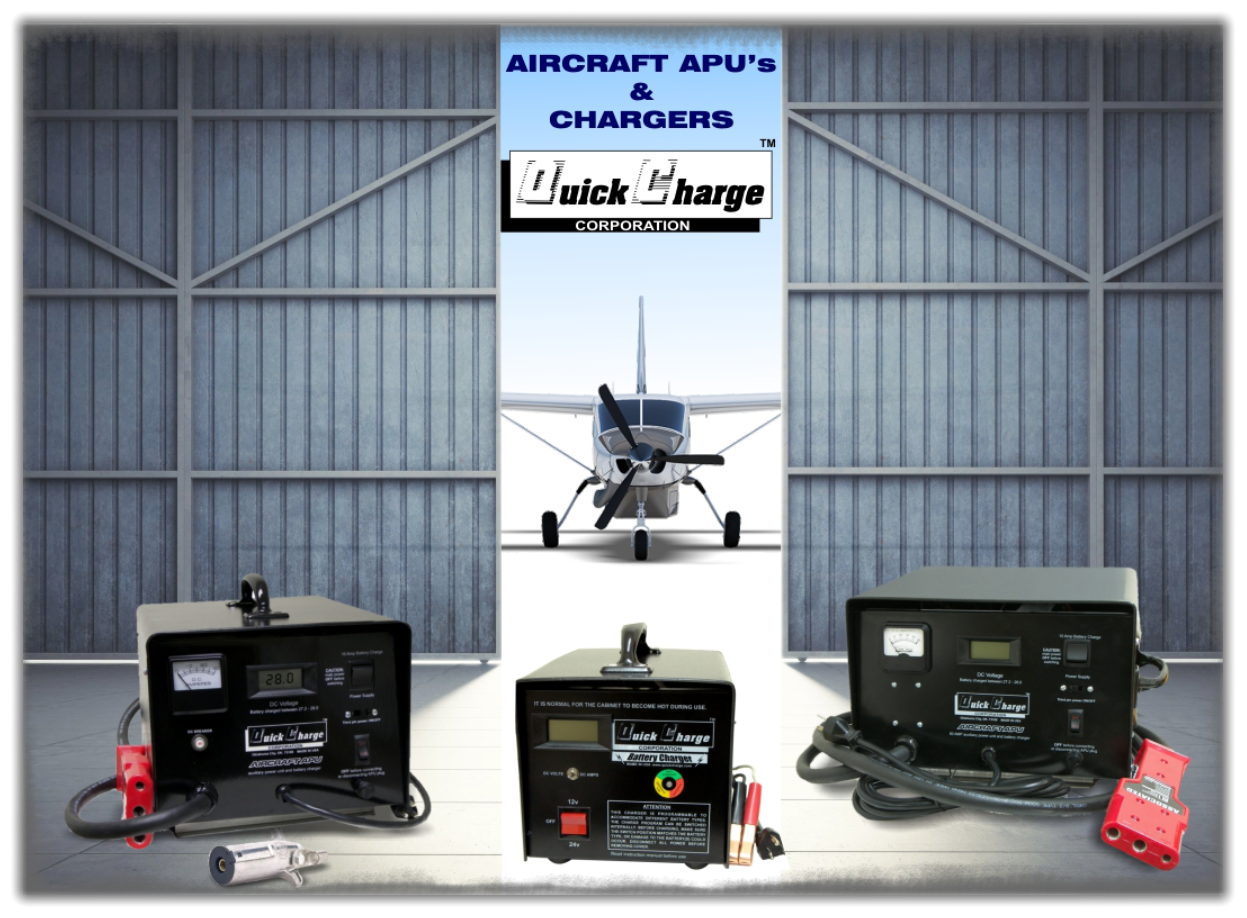

APU’s
supply
filtered
DC
bus
power
when
master
switch
is
activated.
A
must
for
checking
aircraft
controls
and
avionics.
Can
also
charge
battery
through
the
APU
receptacle.
DC
ammeter,
and
digital
voltmeter
indicators.
Output
is
current
limited.
Voltage
is
limited
to
prevent system and battery over voltage.
Single pin Piper Plug
APU14v/25A & APU28v/25A
APU28v/50A
Where to BUY:
- Standard On Board Chargers
- Standard Portable Chargers
- Select-A-Charge On Board Chargers
- Select-A-Charge Portable Chargers
- Select-A-Charge 60-100 amp Chargers
- Series Parallel Chargers
- Aircraft APU'S
- OEM Replacement Chargers
- Accessories
- Manual Boost Chargers
- Multi Bank Chargers
- Load Testers, Dischargers, Recovery
Available in 230v 50Hz.
MODEL
DC
AMPS
DC
VOLTS
AC REQUIREMENTS
Dimensions
H.W.D in.
Weight
lbs.
APU14v/25A
25
14
117VAC 60hz. 3 amps
8.5 x 10 x 9.5
22
APU28v/25A
25
28
117VAC 60hz. 8 amps
8.5 x 10 x 11
35
APU28v/50A
50
28
117VAC 60hz. 12 amps
8.5 x 12 x 11
48
QP122410
Battery Charger
10
14-28
117VAC 60hz. 3 amps
6.5 x 7 x 8
16
QP122410
