MULTI BANK CHARGERS

Battery distributors, warehouses, fleet operators, EV's, RV's, Marine

Not series, or parallel charging. Multi Bank chargers are independent isolated circuits that charge multiple batteries individually. Never any over or undercharging. Each circuit has it's own LED to monitor progress. Simply the best way to charge groups of batteries even if operated in a series or parallel configuration.

The OCTOPUS

The Octopus is a portable or shelf type charger with (10), 12 volt, 6 amp independent circuits. Batteries in different states of discharge can be connected, and each will receive the proper charge. No over or under charging. The Green LED blinks indicating full charge. The batteries can be left connected indefinitely with only an occasional check of water level. Model QPIE12v/6Ax10 is perfect for gel's and wet starting type batteries. Model QPAGM12v/6Ax10 is a three stage charger for AGM type batteries. Tri-color LED's indicate what stage each battery is in. The Octopus is polarity protected, and there is no sparking if the charge leads come together. In addition, more than one set of leads can be connected to any battery to increase the rate of charge in 6 amp increments.

                  Made in U.S.A.

Battery capacity - (10) 12 volt, 50-100 amp hour

batteries @ 20 hr. rate

Dimensions - H.W.D  7” x 12” x 9”

Weight - 38 lbs.

AC Input - 117v, 8 amps

Output - 12v, 6-60 amps

Warranty - 1 year

                   PDF Operating Instructions

QPIE12v/6Ax10

QPAGM12v/6Ax10

  © 2010 Quick Charge Corporation

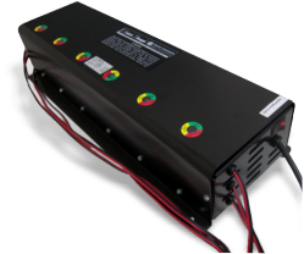

MB Models

(2) 12 volt 10 amp circuits            (3) 12 volt 10 amp circuits

                                                or (2) 24 volt 6 amp circuits

   (6) 12 volt 10 amp circuits             (12) 12 volt 10 amp circuits

These chargers can be mounted on board equipment, or  mounted on a shelf or wall. No need for factory programming, each circuit is  user programmable via internal dip switch to charge deep cycle wet cells, starting wet cells, gels, AGM's, and lithium Ion. Each circuit is current limited, and polarity protected. As an example, they can be connected to each battery of an electric vehicle, and since each battery is charged independent of the other, battery life can increase by at least 25% over a conventional series charger. In another example, you could attach multiple modules to one or more batteries to increase the charge rate in 10 amp multiples.

Because of it's modular construction, and non-sealed enclosure, modules can easily be replaced in the field. Unlike other multi bank brands, no need to shut the whole charger down and ship it back for repair.

6 ft AC and DC leads.

3 year warranty

Anodized aluminum enclosure

Made in U.S.A.

PDF Operating Instructions
